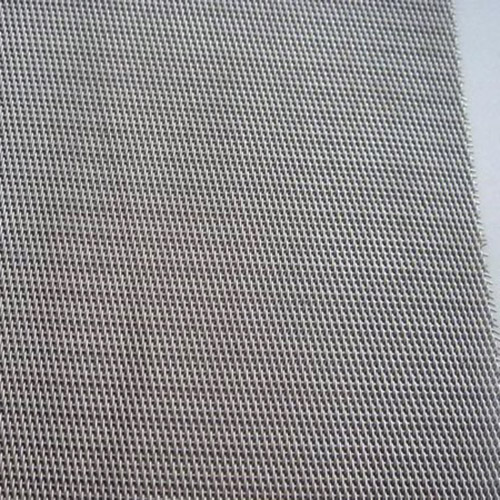

Reverse Dutch Wire Cloth
Materials: Choice stainless steel wire and mild steel wire cloth. Weaving: Plain Reverse Dutch Weave and Twilled Reverse Dutch Weave......
Materials: Choice stainless steel wire and mild steel wire cloth.
Weaving: Plain Reverse Dutch Weave and Twilled Reverse Dutch Weave.
Features: Fine filtration, highly durable.
Applications: Widely used in aerospace, petroleum, chemical industry, chemical fiber, machinery, plastic products, scientic research, conveying and other industries.
Specifications: Refer to the table below. Special sizes can be custom made.
The apparent difference of Reverse Dutch Weaving compared with standard Dutch weave lies in the thicker warp wires and less weft wires. Reverse Dutch woven stainless steel wire cloth offers finer filtration and finds popular application in petroleum, chemical, food, pharmacy and other fields.
Through constant technological innovation and improvement, we can produce stainless steel wire mesh of various specification in reverse Dutch weaving patterns.
Applications of Reverse Woven Wire Cloth: Filter candles, vacuum filters and spring filters.
REVERSE PLAIN DUTCH WEAVE | ||||
HB-Code | Mesh | Wire Diameter（mm） | Micron Retention（μm） | |
Nomina | Absolute | |||
RPD15 | 720X150 | 0.035X0.112 | 15 | 16- 20 |
RPD14 | 625X134 | 0.041X0.13 | 14 | 18- 23 |
RPD17 | 625X132 | 0.042X0.13 | 17 | 20- 26 |
RPD25 | 625X106 | 0.042X0.14 | 25 | 23- 28 |
RPD30 | 625X104 | 0.042X0.15 | 30 | 25 - 32 |
RPD40 | 290X 74 | 0.09X0.20 | 40 | 38- 45 |
RPD50 | 290X60 | 0.09X0.23 | 50 | 43-51 |
RPD60 | 175X 50 | 0.15X0.30 | 60 | 62- 68 |
RPD100 | 175X45 | 0.15X0.32 | 100 | 90-102 |
RPD80 | 130 X 35 | 0.20X0.40 | 80 | 90 |
RPD100 | 130X30 | 0.20X0.45 | 100 | 100-108 |
REVERSE DUTCH TWILLED WEAVE? | ||||
HB-Code | Mesh | Wire Diameter（mm） | Micron Retention（μm） | |
Nomina | Absolute | |||
TRD60 | 400X120 | 0.065X0.10 | 60 | 60- 70 |
TRD55 | 325X 39 | 0.15X0.30 | 55 | 45-75 |
TRD125 | 260X 40 | 0.15X0.22 | 125 | 80-95 |
TRD100 | 228X36 | 0.19X0.28 | 100 | 95-130 |
TRD145 | 160X25 | 0.315X0.40 | 150 | 95-125 |
TRD165 | 152X24 | 0.315X0.355 | 165 | 115-130 |
TRD200 | 132X18 | 0.355X0.455 | 200 | 180-220 |
TRD250 | 132X16 | 0.352X0.457 | 250 | 210-260 |
TRD350 | 132X16 | 0.355X0.56 | 350 | 350-300 |
TRD400 | 72X15 | 0.45X0.45 | 400 | 400-450 |
