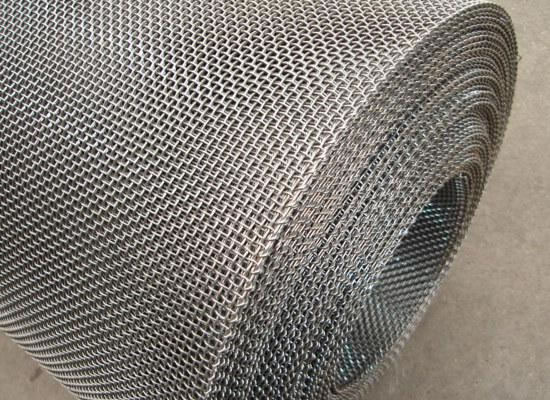

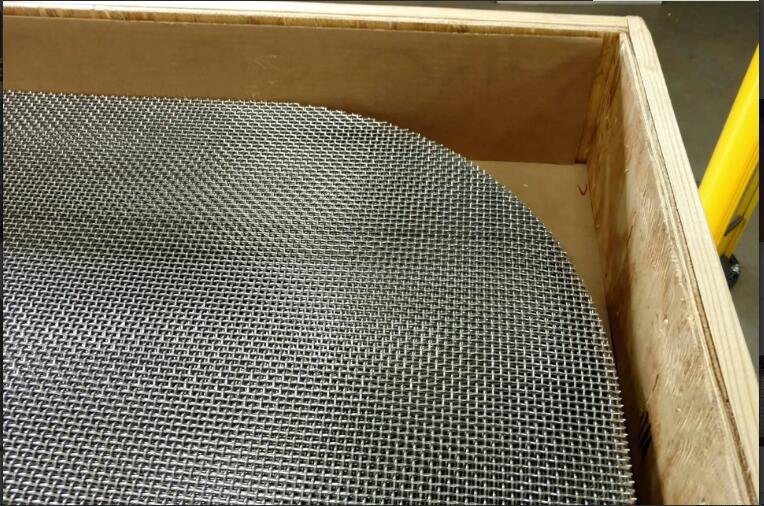

Square Opening Wire Cloth
Materials: 304、304L、316、316L Stainless Steel ,Mild Steel,Galvanized,Brass,Precious Metal and Special Alloy Wire....
Materials: 304、304L、316、316L Stainless Steel ,Mild Steel,Galvanized,Brass,Precious Metal and Special Alloy Wire.
Weaving Types: Plain Weave and Twilled Weave.
Plain weave: Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Twill Weave: Each weft wire passing alternately over two, and then under two successive warp wires and each warp wire passing alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.
Property: It has good performance of acid-resisting,alkali-resisting,heat-resisting and wear-resisting etc.
Usage: Widely used in petroleum, chemical industry, environment protection, mine, airspace, paper-making,electronic, metallurgy etc.
Mesh Size | Wire Diameter | Aperture | Open ?Area （%） | ?Weave Type | ||
Inch | Mm | Inch | Mm | |||
1X1 | 0.080 | 2.03 | 0.920 | 23.37 | 84.6 | Plain |
2X2 | 0.063 | 1.60 | 0.437 | 11.10 | 76.4 | Plain |
3X3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 | Plain |
4X4 | 0.063 | 1.60 | 0.187 | 4.75 | 56.0 | Plain |
4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9 | Plain |
5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 | Plain |
6X6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 | Plain |
8X8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 | Plain |
10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 56.3 | Plain |
10X10 | 0.020 | 0.51 | 0.080 | 2.03 | 64.0 | Plain |
12X12 | 0.023 | 0.584 | 0.060 | 1.52 | 51.8 | Plain |
12X12 | 0.020 | 0.508 | 0.063 | 1.60 | 57.2 | Plain |
14X14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 | Plain |
14X14 | 0.020 | 0.508 | 0.051 | 1.30 | 51.0 | Plain |
16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 | Plain |
18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 | Plain |
20X20 | 0.020 | 0.508 | 0.0300 | 0.76 | 36.0 | Plain |
20X20 | 0.016 | 0.406 | 0.0340 | 0.86 | 46.2 | Plain |
24X24 | 0.014 | 0.356 | 0.0277 | 0.70 | 44.2 | Plain |
30X30 | 0.013 | 0.330 | 0.0203 | 0.52 | 37.1 | Plain |
30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 | Plain |
30X30 | 0.009 | 0.229 | 0.0243 | 0.62 | 53.1 | Plain |
35X35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 | Plain |
40X40 | 0.010 | 0.254 | 0.0150 | 0.38 | 36.0 | Plain |
50X50 | 0.009 | 0.229 | 0.0110 | 0.28 | 30.3 | Plain |
50X50 | 0.008 | 0.203 | 0.0120 | 0.31 | 36.0 | Plain |
60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 | Plain |
60X60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 | Plain |
70X70 | 0.0065 | 0.165 | 0.0078 | 0.20 | 29.8 | Plain |
80X80 | 0.0055 | 0.140 | 0.0070 | 0.18 | 31.4 | Plain |
90X90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 | Plain |
100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | Plain |
100X100 | 0.004 | 0.102 | 0.0060 | 0.15 | 36.0 | Plain |
100X100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 | Plain |
120X120 | 0.0037 | 0.0940 | 0.0064 | 0.1626 | 30.7 | Plain |
150X150 | 0.0026 | 0.0660 | 0.0041 | 0.1041 | 37.4 | Plain |
180X180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 34.7 | Plain |
200X200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 | Plain |
250X250 | 0.0016 | 0.0406 | 0.0024 | 0.0610 | 36.0 | Twill |
270X270 | 0.0016 | 0.0406 | 0.0021 | 0.0533 | 32.2 | Twill |
300X300 | 0.0051 | 0.0381 | 0.0018 | 0.0457 | 29.7 | Twill |
325X325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30.0 | Twill |
400X400 | 0.0012 | 0.0030 | 0.0013 | 0.0340 | 25.0 | Twill |
500X500 | 0.0010 | 0.0254 | 0.0010 | 0.0254 | 25.0 | Twill |
635X635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 24.0 | Twill |
